TRUCK AND TRACK CPT RIGS
Vertek’s truck and track CPT rigs are ideal for high production CPT investigations.
READY TO TAKE YOUR CPT OPERATIONS TO THE NEXT LEVEL?
Vertek truck and track CPT rigs are designed for high production and high efficiency CPT operations. These CPT rigs range in push force from 10 to 25 tons of total reaction ballast.
We can offer an option that best suits your needs. Capable to complete all facets of CPT testing in a climate-controlled environment, our truck and track CPT rigs can keep your team out of the elements and comfortable 365 days a year.
SPECIFICATIONS
CPT push specifications
- 20-ton push capacity.
- 25-ton pull capacity.
- 42-inch cylinder stroke.
Hydraulic clamp
- Heat-treated smooth jaws that won’t scar the rods.
- 85,000 lbs of clamping force.
- Visible pressure gauge for verification.
Regenerative circuit
- Custom hydraulic manifold to decrease non-ASTM cycle times.
- Automatically comes out of regenerative mode for higher retraction loads.
Non-retractable guide tube
- Provides lateral support for rods while pushing.
- Threaded for installation of rod wiper or steam cleaning heads.

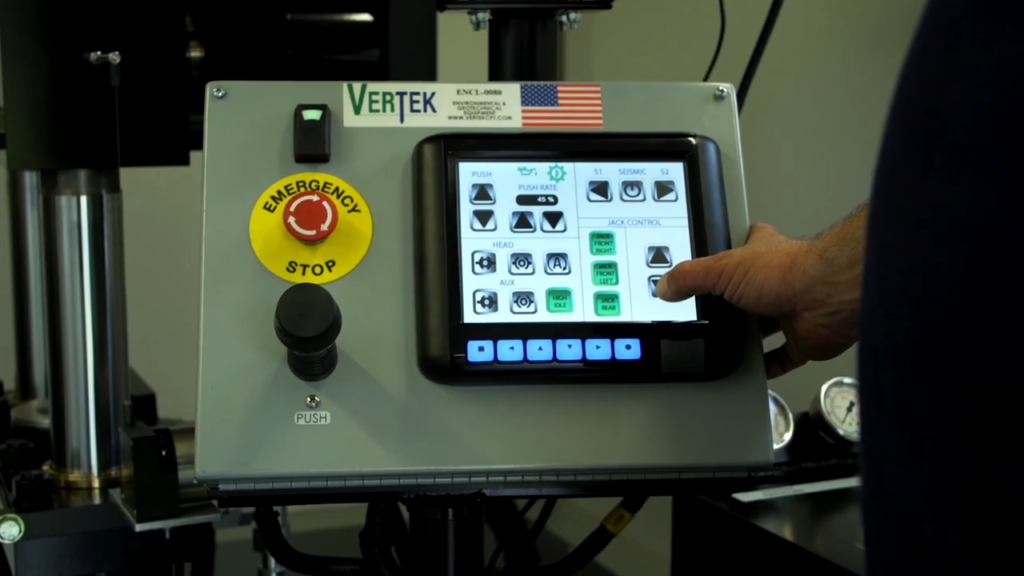

Electronic hydraulic controls
- User intuitive push-button HMI.
- Independent joystick for manual operation.
- Highly visible hydraulic pressure gauges for system operation.
Safety clamp
- Secondary hydraulic rod clamp to hold rods when the primary clamp is released.
- Visible pressure gauge for verification.
CUSTOMERS
OUR COMMITMENT
When you purchase a piece of Vertek CPT equipment, you become part of Team Vertek. We provide every customer with unparalleled customer service and unlimited technical support. From helping you choose the best solution for your business to training and field support, we will be by your side and always just a phone call away.
CONTACT US
Give us a call at 1-800-639-6315 or send us a note and we will follow up to discuss your needs and our solutions.
